CORE

3x3 | Transmitter unit | WiSpeak | class 1 Bluetooth® | aux out

Wireless Transmitter | Reference: CCORE

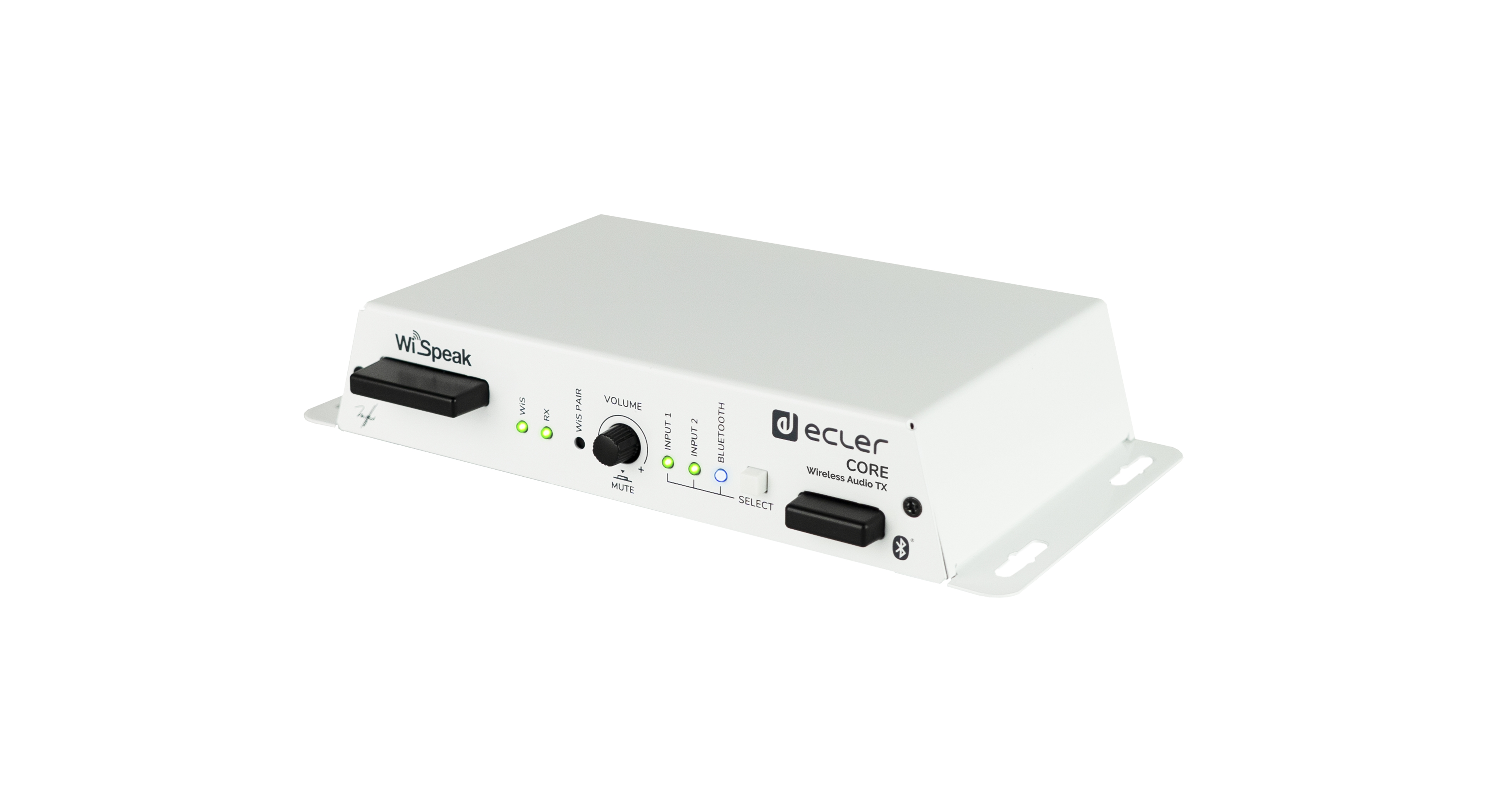

WiSpeak CORE is the transmitter device that communicates with all the receiver devices to create a WiSpeak wireless network, and takes the role of the Master Unit. Its main functions are to pair and send audio contents to all the receivers (TUBE, CUBE), keeping a stable communication with them, and send also individual configuration commands to each receiver if desired. It also takes care of the global configuration of the system: audio inputs in use, equalization, output levels, etc. CORE is the Master Unit of the Ecler WiSpeak system. Together with TUBE, CUBE and GLOBE, provides a simple and fast wireless installation with up to 500m2 coverage. It includes a WiSpeak grip app available for Android and iOS, which can be used for an advanced set up and fine tuning of the Wireless Pro Audio system.

  • External, universal Power Supply (100-240VAC 50-60Hz)
  • Compatible with WiSpeak grip app for set up and control functions (available for Android and iOS), using Bluetooth® connection

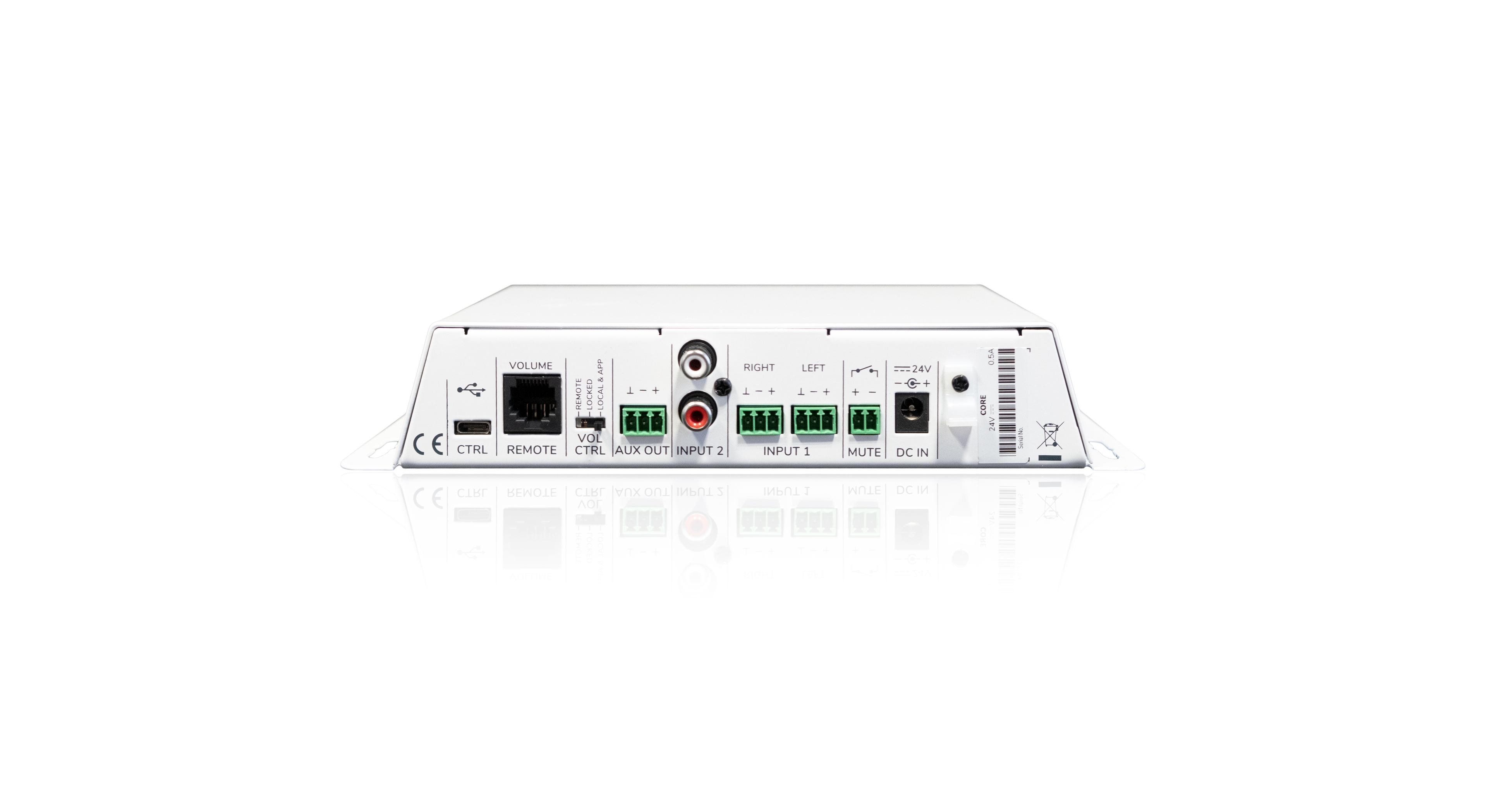

  • 3 audio inputs available:
  • o Analogue stereo, unbalanced. 2 x RCA connectors
  • o Analogue stereo, balanced. 2 x Euroblock 3p connectors
  • o Bluetooth®, class 1 (up to 25 meters range, maximum)
  • 1 x WiSpeak wireless audio signal transmitted (a mono conversion of the selected input)
  • 1 x AUX OUT analogue signal available (a copy of the transmitted WiSpeak signal). It can be used for linking the unit to external audio devices, like amplifiers, mixers or subwoofer units
  • MUTE port, to allow the system’s audio silencing when an external dry contact is closed
  • REMOTE port, to allow a simple general volume control for the end user -within a programmable range- using a WPaVOL or compatible wall panel
  • Maximum number of receivers under control per transmitter device = 24 units. The system can be extended by linking a new transmitter to an existing receiver, creating a second WiSpeak network that shares the audio contents and Master volume with the first (main) one

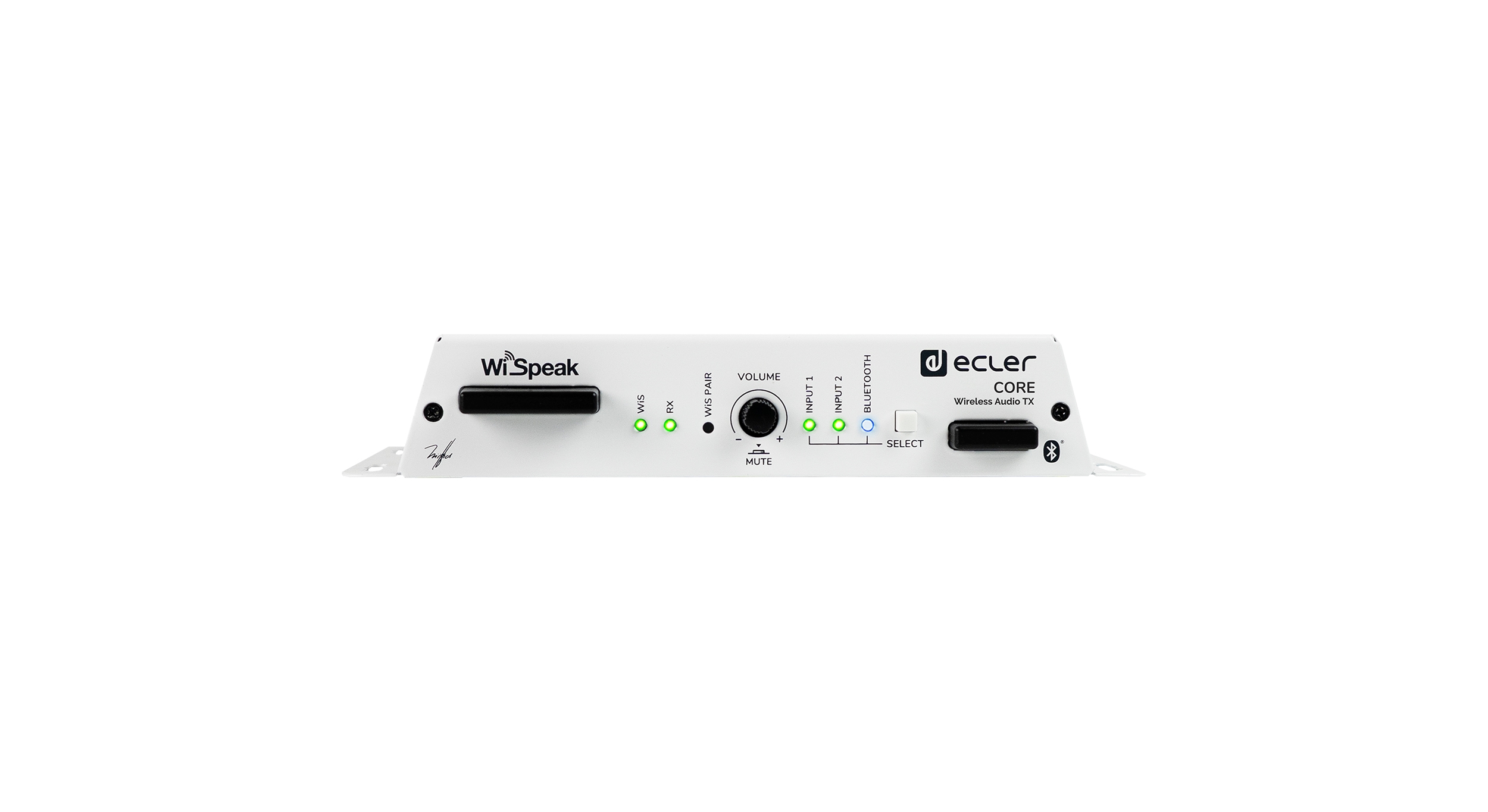

  • Front panel controls for source (input) selection and general (Master) volume control
  • Recommended maximum range from a CORE transmitter to any WiSpeak paired receiver (TUBE CUBE or GLOBE): 12 meters, with direct line of sight
  • Front panel PAIR key: it allows pairing the receivers to the transmitter quickly and easily, for a basic set up of the WiSpeak system
  • Front panel LED indicators
  • Service USB-C port (not for external power supply, only for service updates & firmware)

Applications

Retail   Education   Corporate   Sports & Wellness   Hospitality
