VEO-MXH48T

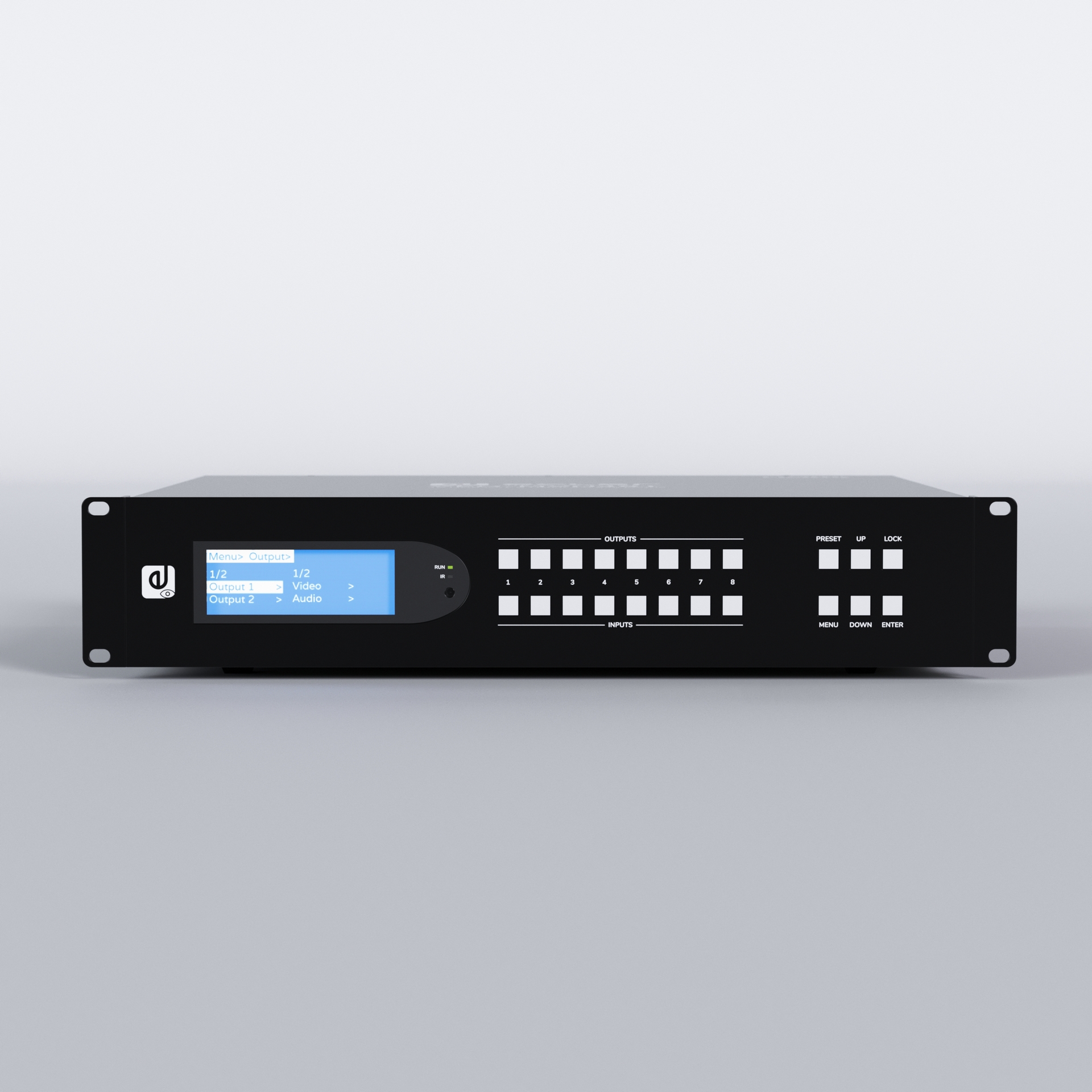

VEO-MXH48T is a 8x8 HDBaseT and HDMI® matrix with support for up to 4K/UHD video resolution, 60 Hz and 4:4:4 chroma sampling. It includes 8 analogue audio inputs and 16 analogue and digital audio de-embedding outputs as well as EDID management, a LCD display and an integrated WebGUI that allows to configure and control the unit in a very user friendly way. The HDBaseT outputs can deliver 4K/UHD video up to 40m and Full HD video up to 70m as well as PoC power supply to HDBaseT compliant receivers. It includes a video downscaler and an independent audio matrix. The HDMI® sources can be routed using the front panel’s selection buttons, through the internal WEB GUI, serial commands, TCP/IP commands and IR signals. It is also HDCP 2.2 and 1.4 compliant and allows for bidirectional IR and RS-232 command controls. VEO-MXH48T can load and launch up to 8 presets which makes it a very suitable solution for professional applications that require video and audio HDMI® signals routing between 4K/UHD sources and displays with smart control management.

• 8 x HDM®I inputs which can be independently routed to 8 x HDBaseT Outputs and 8 x HDMI® outputs
• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
• Supports HDMI® up to 4K@60Hz, 4:4:4, 8 Bit. Also HDR (at 4K@60Hz 4:2:0 10 Bit)
• Extends 4K@60Hz 4:4:4 8 bit 4K video up to 40m and Full HD up to 70m
• Independent downscaling of 4K@60Hz 4:4:4 video input resolution to the following formats: Full HD@60Hz (for screens that do not support 4K) / 4K60Hz 4:2:0 (for screens that do not support 4K@60Hz 4:4:4)
• Independent Audio Matrix
• Supports audio formats including Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

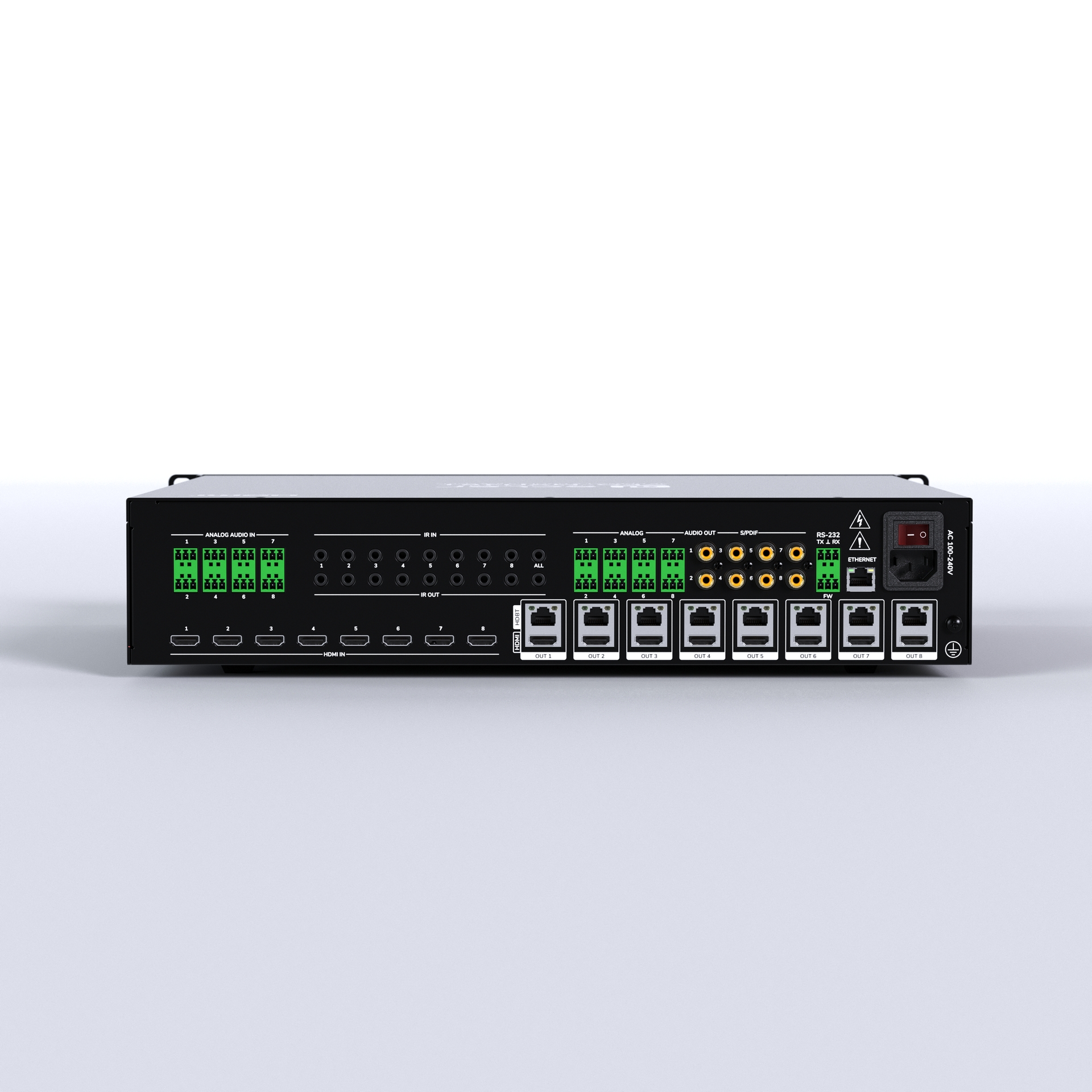

• Analogue audio insertion and extraction on stereo unbalanced Euroblock connectors as well as stereo and surround digital audio extraction on SPDIF coaxial connector

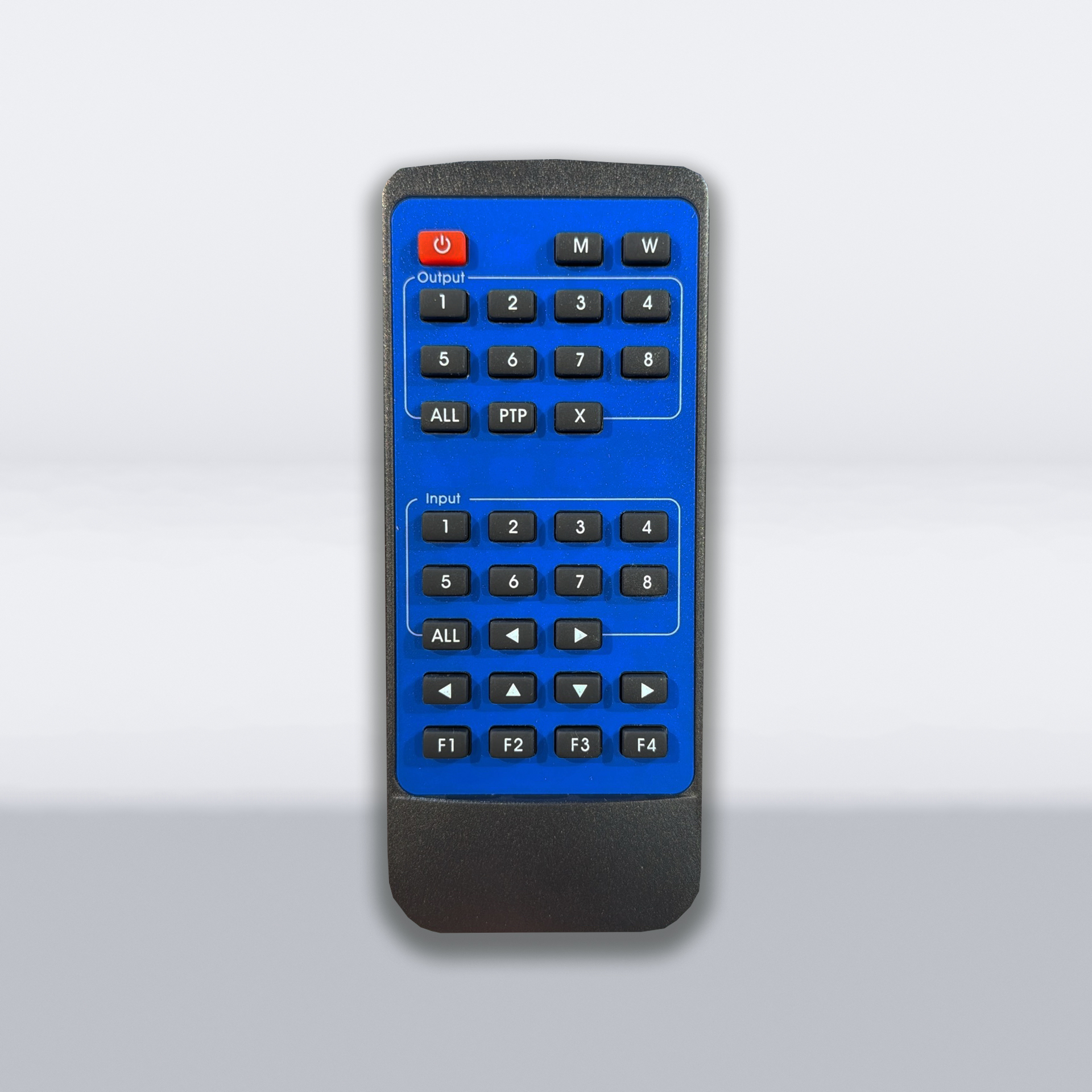

• Control via front panel and display, IR remote, RS-232 control, IP control and WebGUI.
• Advanced EDID management, CEC, ARC.
• HDCP 2.2 compliant.
• 100-240 V AC @ 50-60Hz Power Supply with 4 plugs (EU, USA, UK, AUS)
• Compatible with VEO-XRT44 HDBaseT receiver.

Applications

Retail   Sports & Wellness   Hospitality
