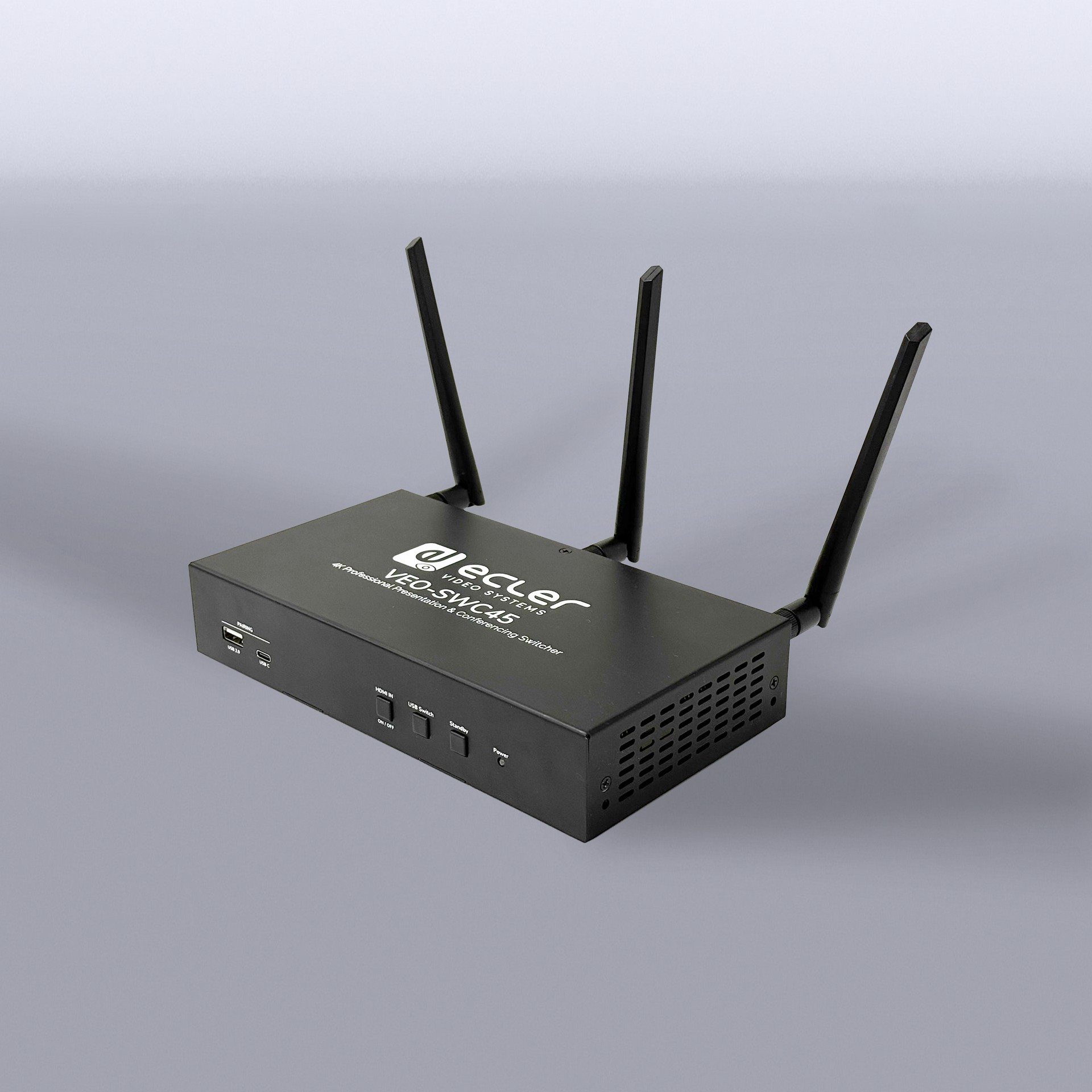

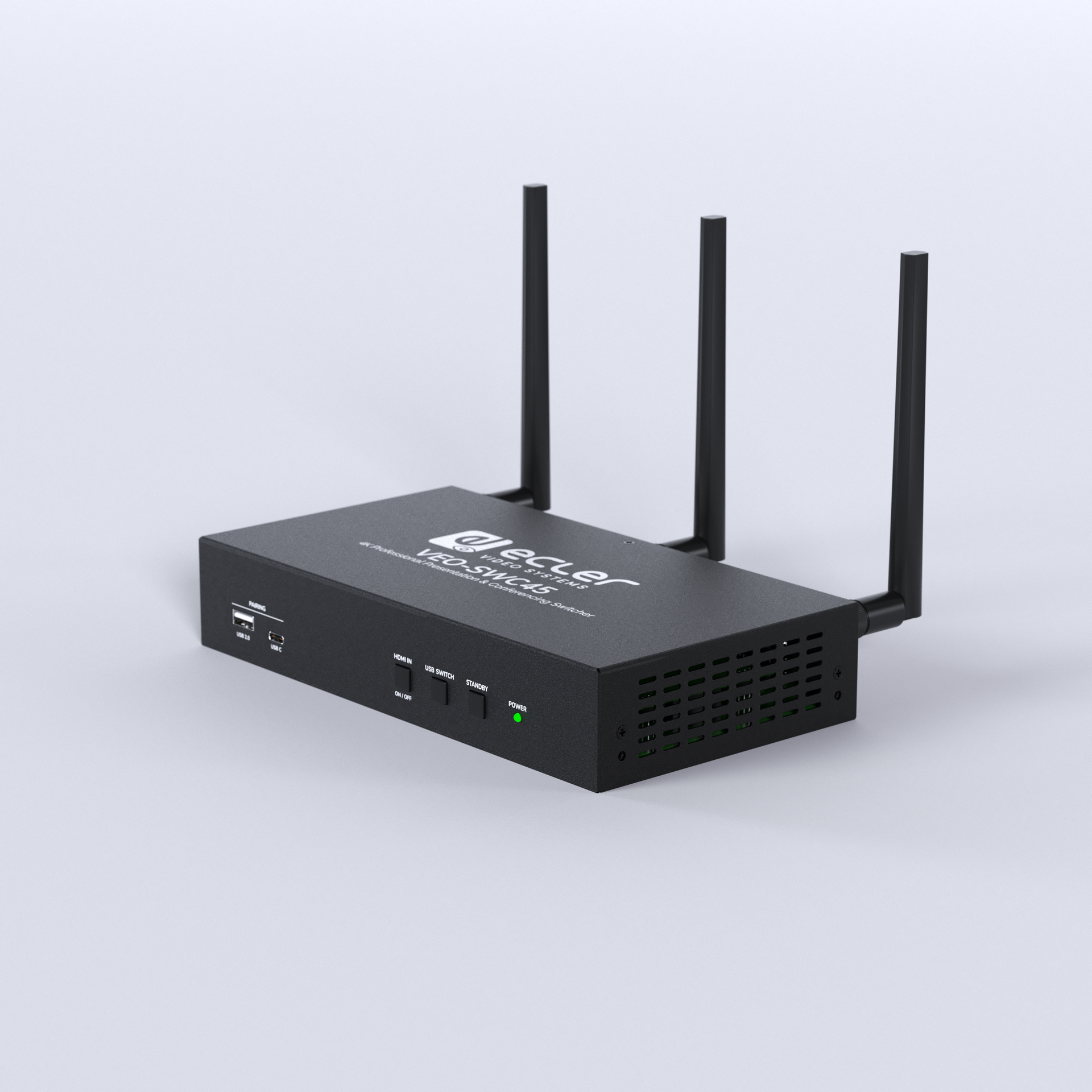

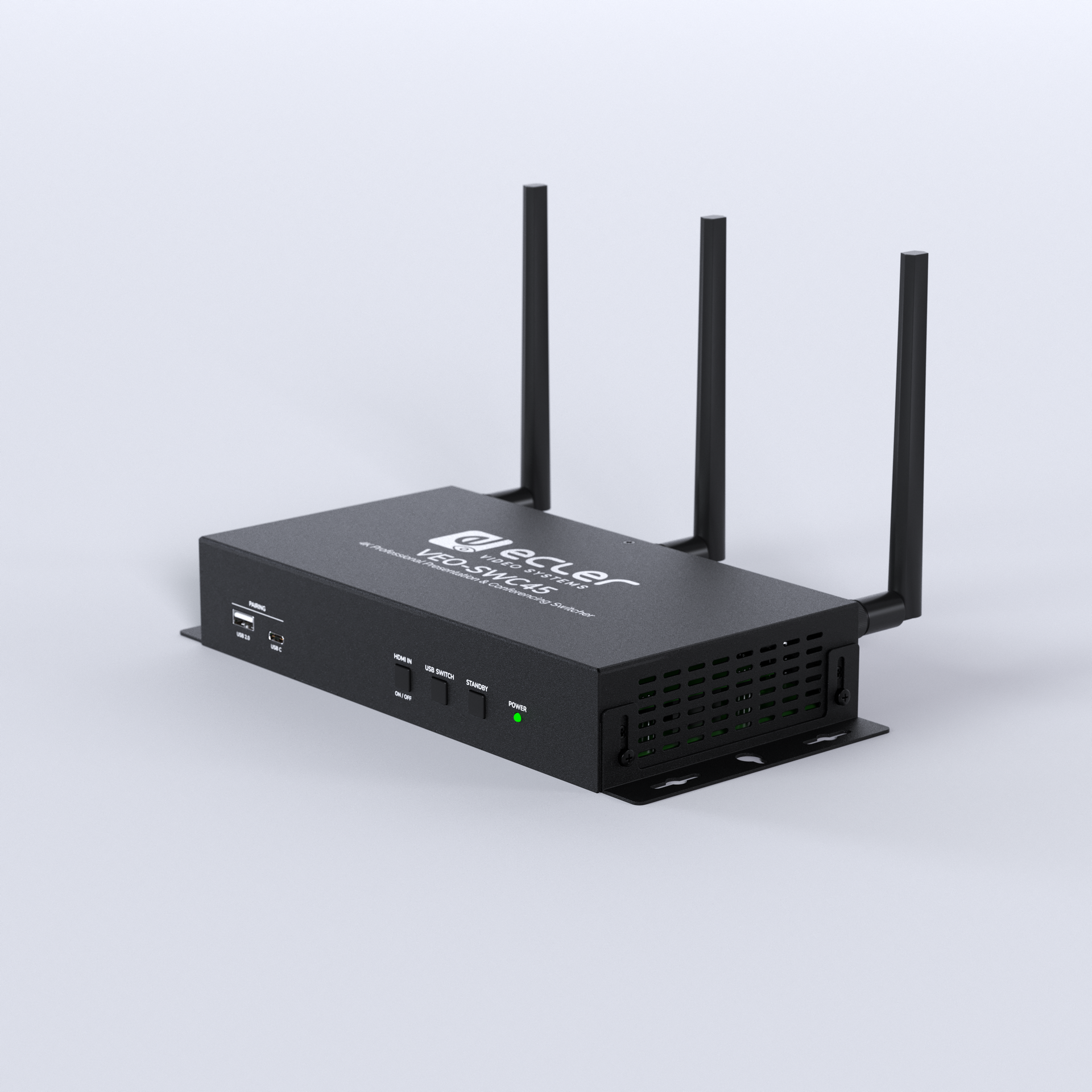

VEO-SWC45

VEO-SWC45 is a professional 4K video conferencing and presentation switcher designed for hybrid -wired and wireless- connectivity. It features two HDMI® outputs, advanced display management and USB ports for integrating video conferencing systems with intelligent camera switching. It supports wireless presentation via Chromecast, Miracast, Airplay, the VEOShare app and 4K accessories such as VEO-SWC45TH and VEO-SWC45TU for HDMI® and USB-C connections. The main HDMI® output supports up to 4K/60Hz and features a balanced stereo audio extractor with Euroblock connector. It includes a built-in Web GUI interface for configuration and control, plus GPI, RS-232 and TCP/IP via two RJ-45 ports with independent LAN connections. It allows up to five devices to be displayed simultaneously in multi-view format and supports up to 16 additional participants. With HDCP 2.2 and PoE support, the VEO-SWC45 delivers a powerful, scalable solution for modern presentation and conferencing needs.

• BYOM presentation switcher with wireless multi-format connectivity.
• Support for HDMI®. 18Gbps 4K UHD 60Hz 4:4:4 video output as specified in HDMI® 2.0b.
• Support for standard wireless mirroring protocols like Airplay, Chromecast, Miracast, and VEOShare app for a Full HD video content sharing.
• Plug-and-play VEO-SWC45TH and VEO-SWC45TU HDMI® and USB-C wireless transmitters for up to 4K UHD video content sharing, including customizable auxiliary function buttons.
• Support for up to two USB video conferencing cameras with smart switching feature between local and wireless host devices via USB Type-A and Type-C connectors.
• Support for interactive touchback function on both wired and wireless connections for interactive screens, whiteboards, and live annotation tools.
• Dual HDMI® video outputs with dedicated screen management for mirrored screen sharing or assigning local and remote video conference participants.
• Support for up to 5 simultaneous split-screen presentations and up to 16 participants on hold.
• Support for main screen content sharing to other user’s local displays.
• Customizable background and font color for the home screen page.
• Dual RJ-45 ports for independent network connections with extra security layers for an encrypted wireless transmission.
• Stereo analog audio extraction via a balanced Euroblock connector.
• HDCP 2.2 compliant.

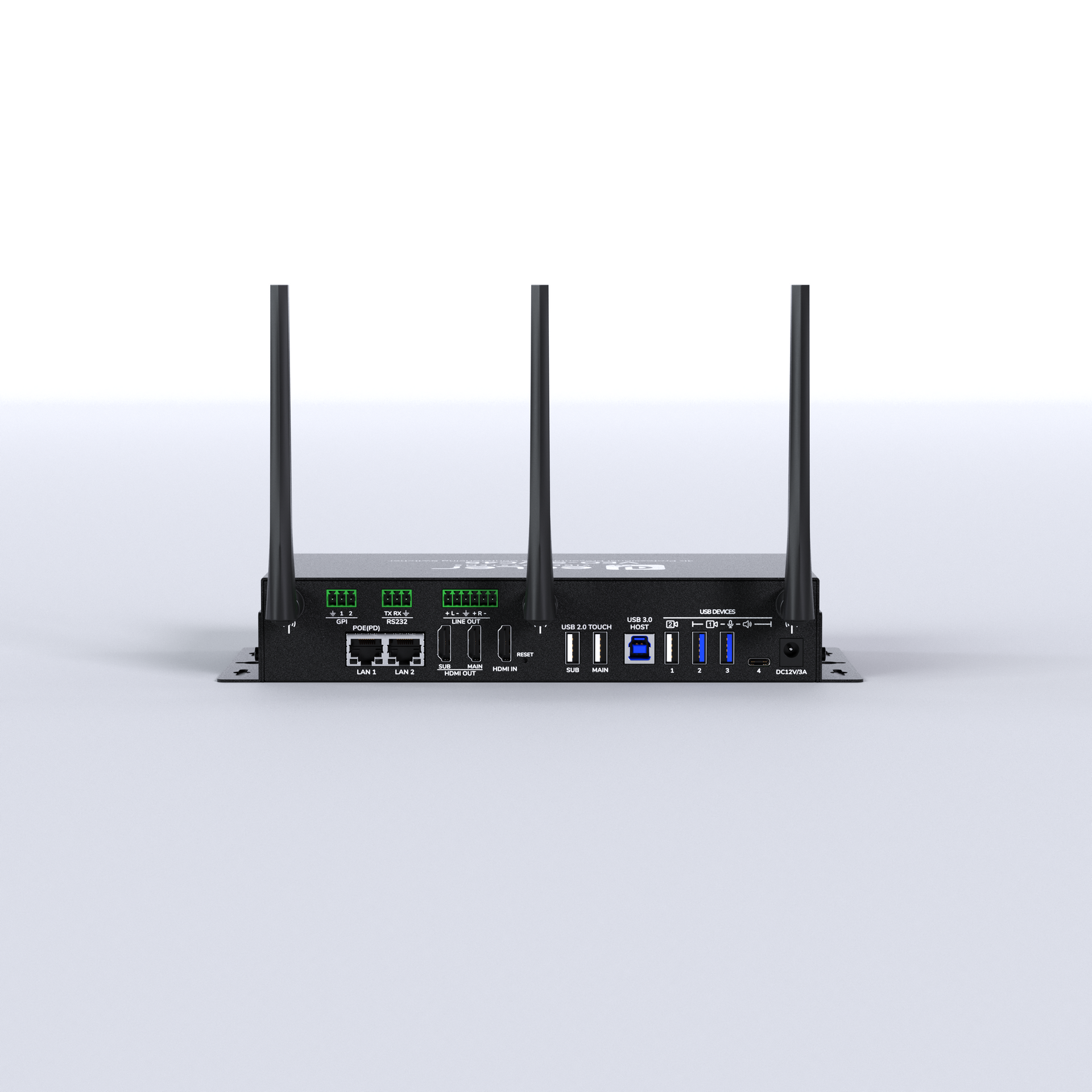

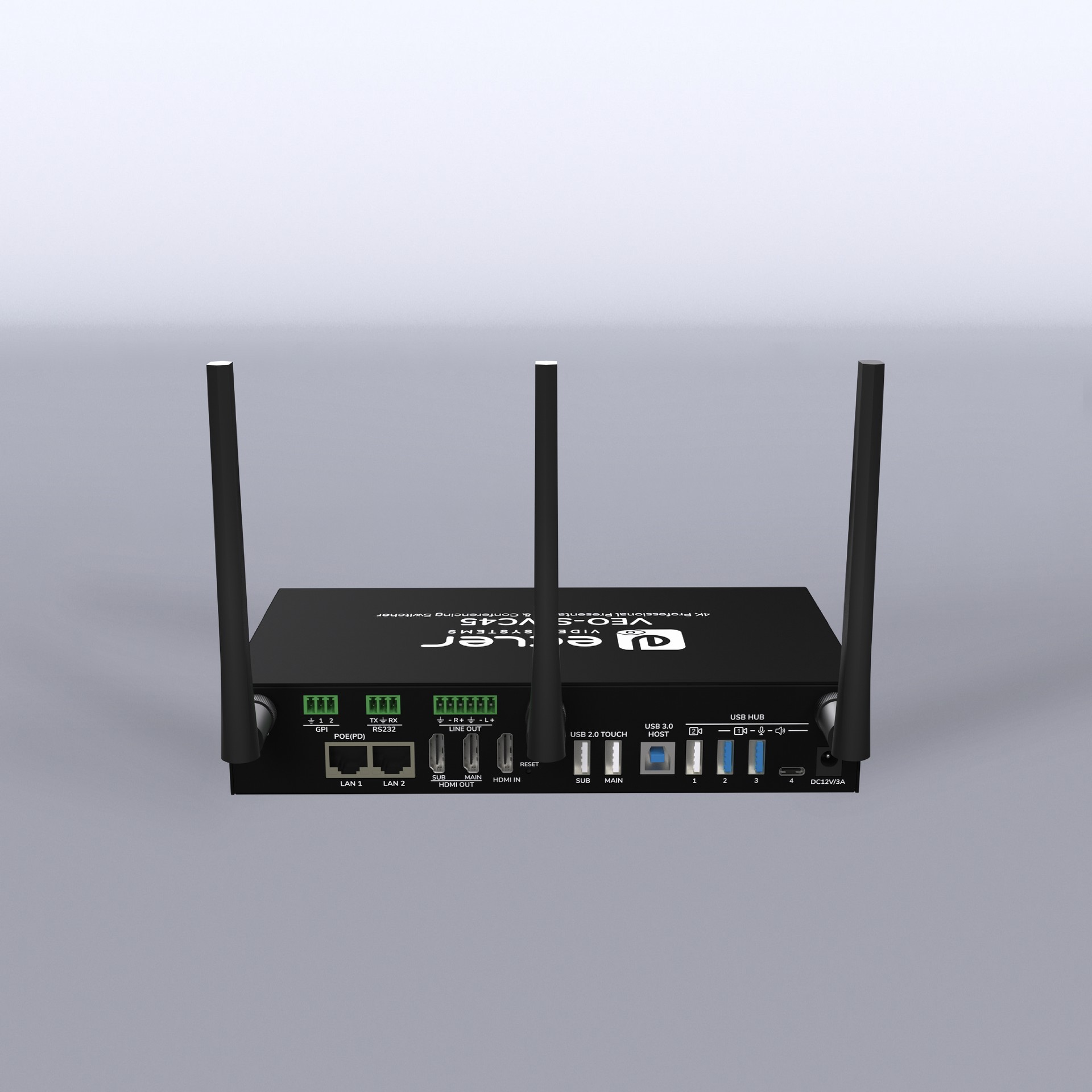

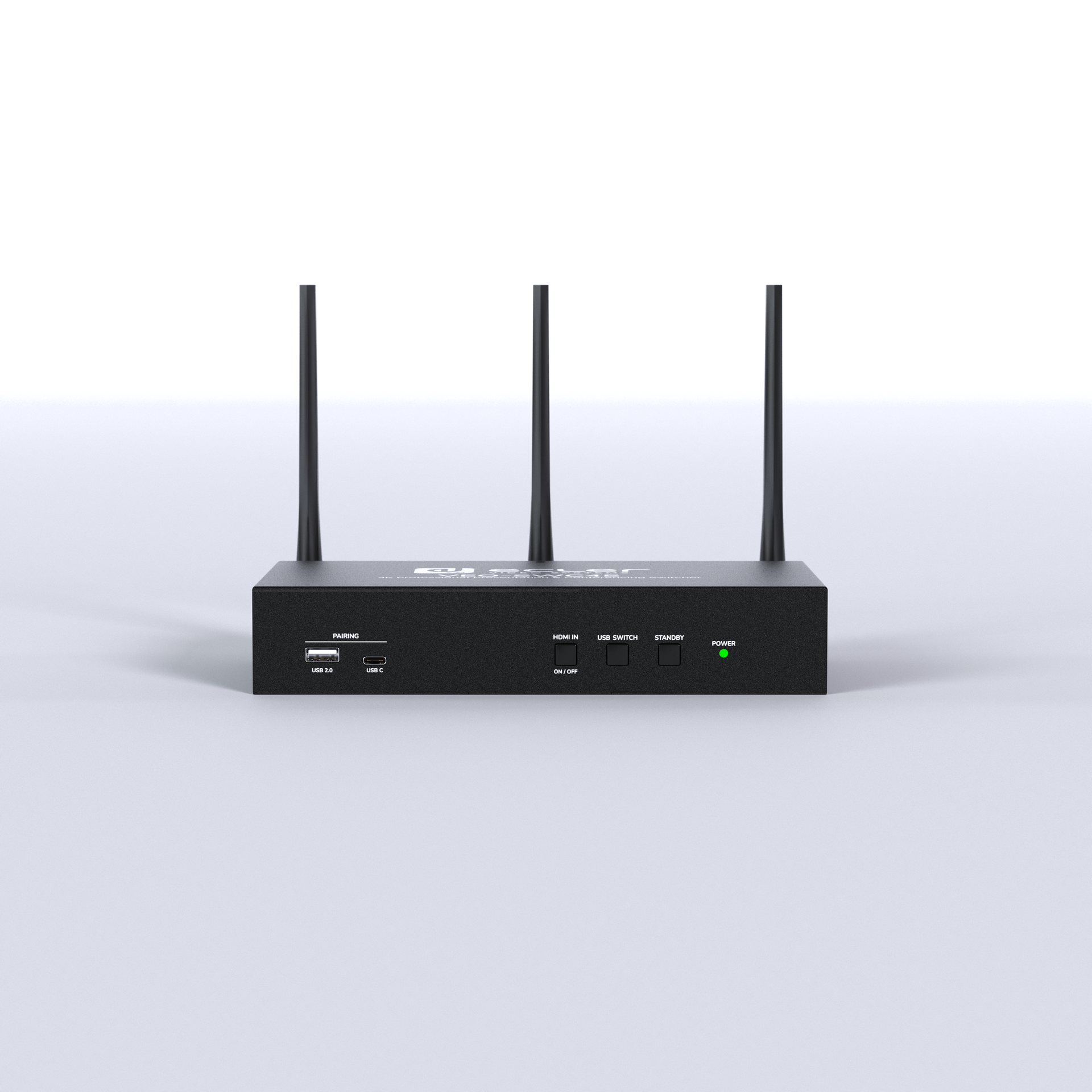

• Control options include front panel buttons, GPI, RS-232, TCP/IP Remote Control, and WebGUI.
• Support for PoE function.
