WPaCNX-CBO

Remote Wall Panel Connection

Analogue Controls & Panels | Reference: CWPACNXCBO

Download image

Download image

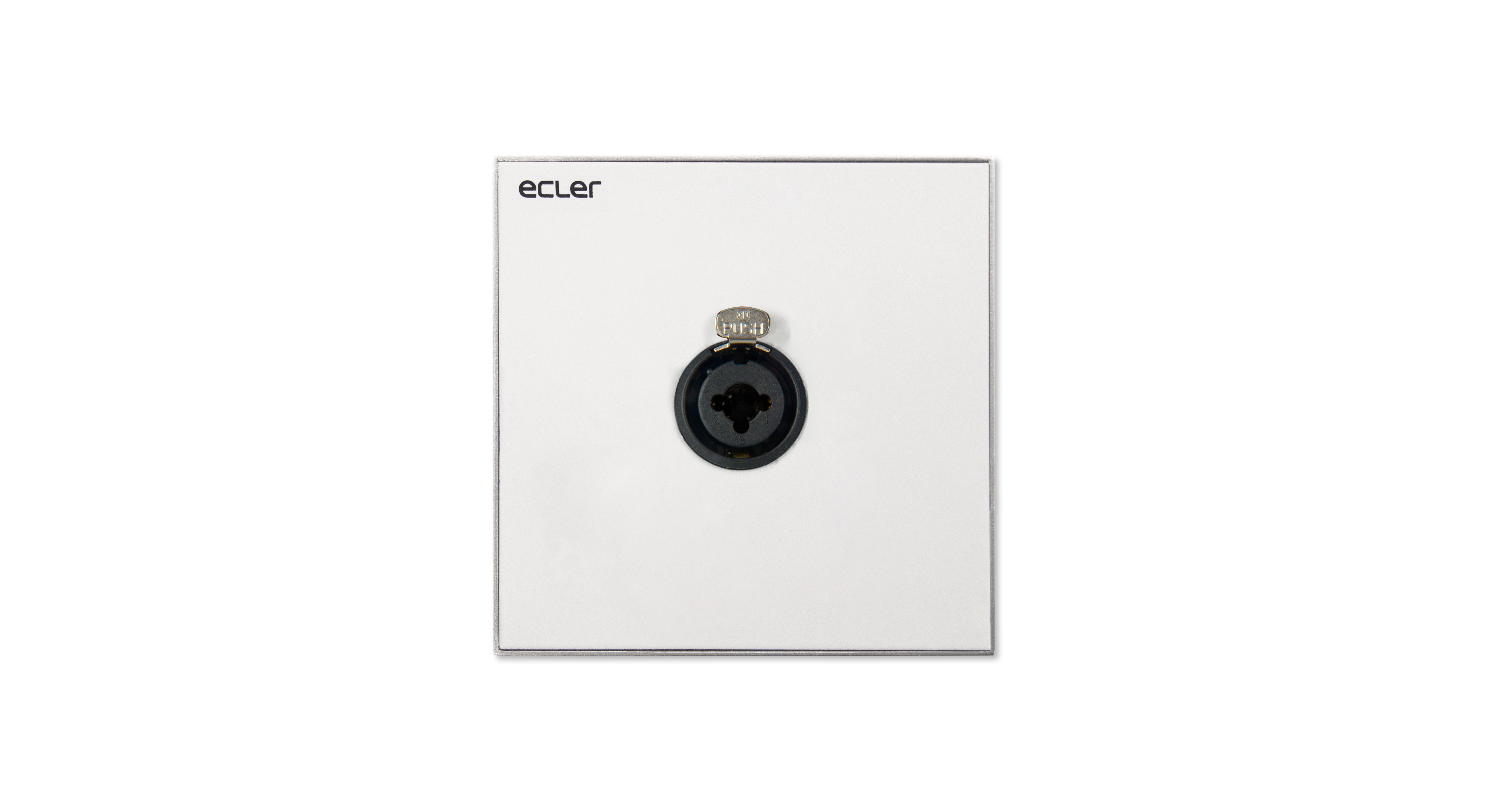

WPaCNX-CBO is a connection Wall Plate with Female 3 pin XLR connector + Jackk ST (combo connector). Screw-type connector at the back (no solder needed). Surface-mount installation box included (WxHxD = 86 x 86 x 38mm). WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.

PHYSICAL

Type

Wall-mounted remote control, with an XLR female, 3-pin + stereo jack (combo connector)

Format

Single-gang EU format - TBC

Installation options

Surface, in-wall

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Included accessories

Surface-mount box

Finished colour

White (RAL 9016)

Dimensions

86 x 86 x 38 mm / 3.38 x 3.38 x 1.49 in. (WxHxD) with surface-mount box

Weight

0.13 kg / 0.28 lb

Pieces per box

Unit

Shipping dimensions

120 x 210 x 80 mm / 4.72 x 8.27 x 3.15 in. (WxHxD)

Shipping weight

0.26 kg / 0.57 lb

Accessories

WPA2FMBOX

Product Accessories

View

WPa2SMBOX
