VIDEO PERFOMANCES
Video Input Connectors
1 HDMI® Type A Female, 18 Gbps

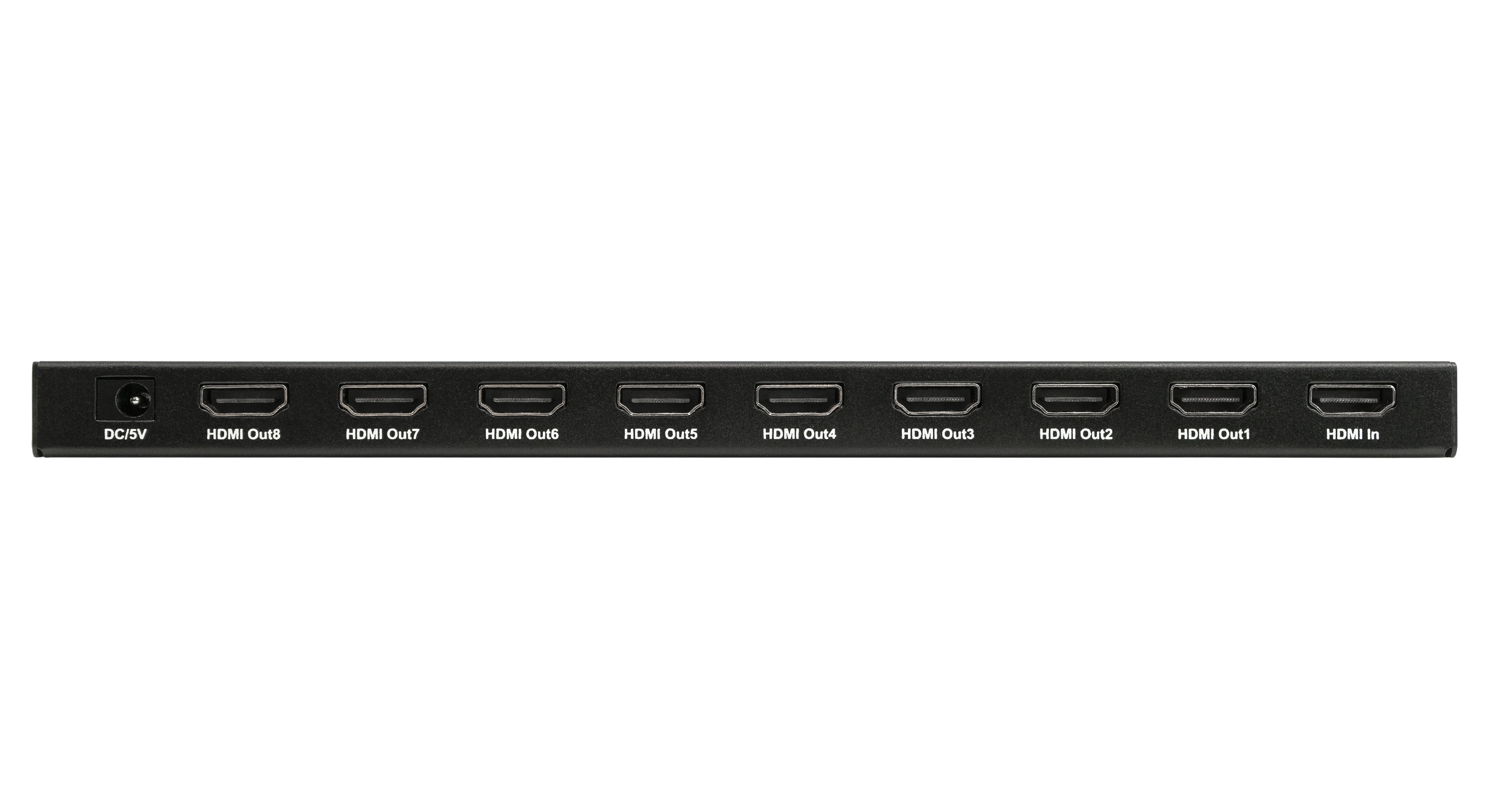

Video Output Connectors
8 HDMI® Type A Female, 18 Gbps
Video Input Resolutions
Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
Video Output Resolutions
Up to 4096x2160@60Hz
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p
1080p@23.98/24/25/29.97/30/50/59.94/60Hz,1080i@50/59.94/60Hz,720p@50/59.94/60Hz,
576p, 576i, 480p, 480i
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Colour Depth
8-bit, 10-bit, 12-bit
Colour Space
RGB, YCbCr
HDCP
2.2/1.4 Compliant
HDR
HDR 10
HDMI® Distance
up to 10 meters (33 feet) with Ecler VEO cables
