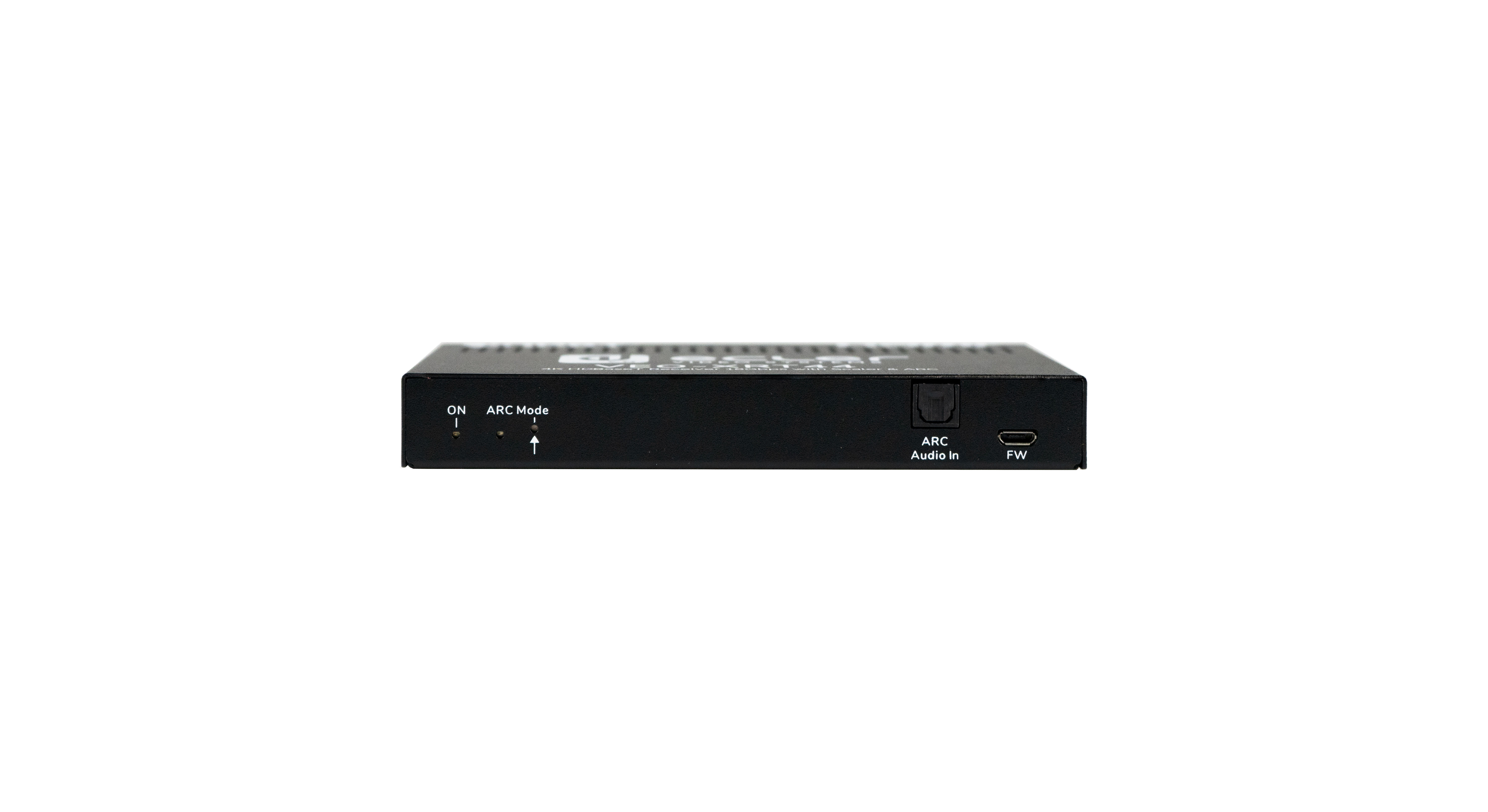

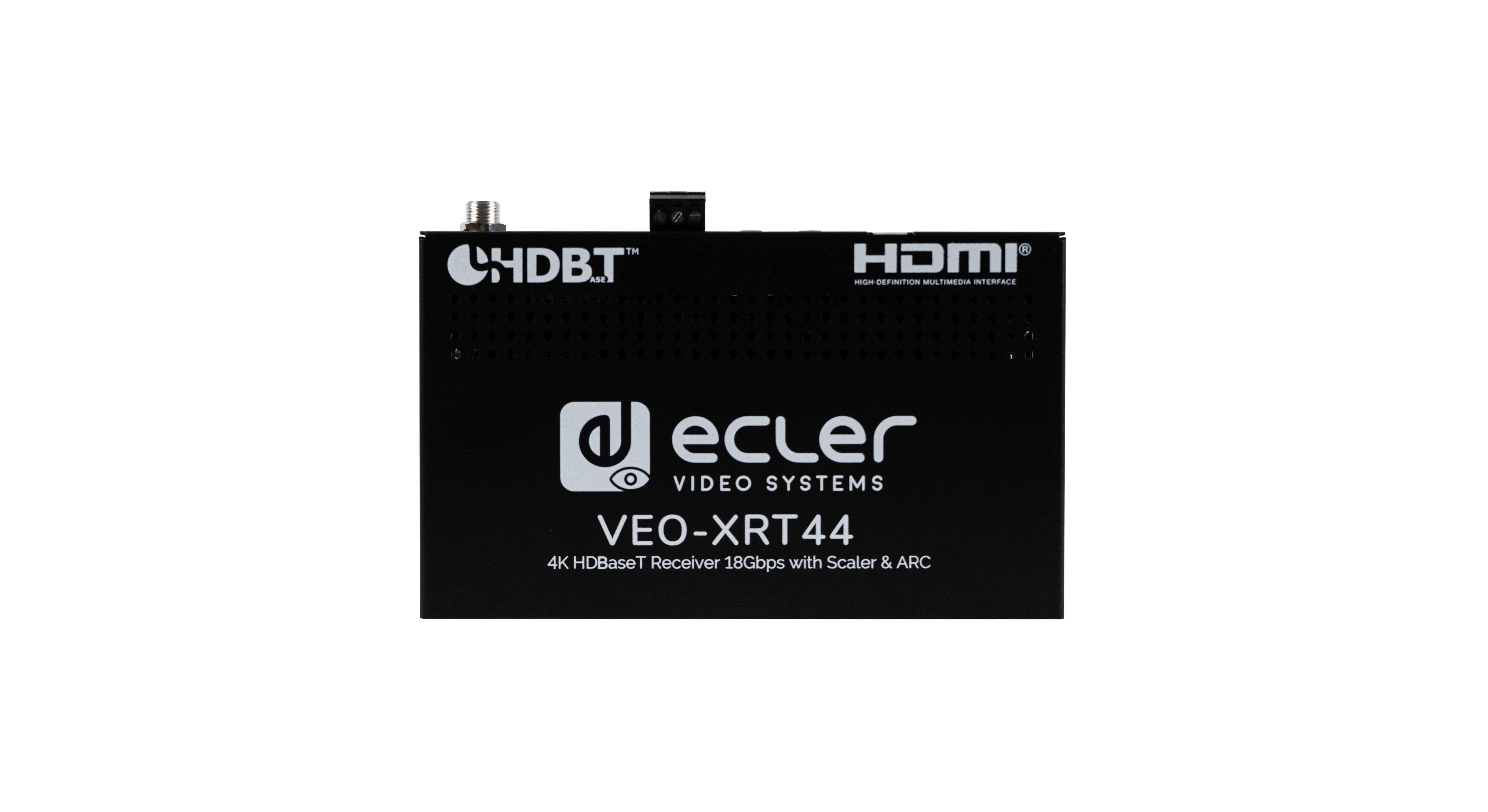

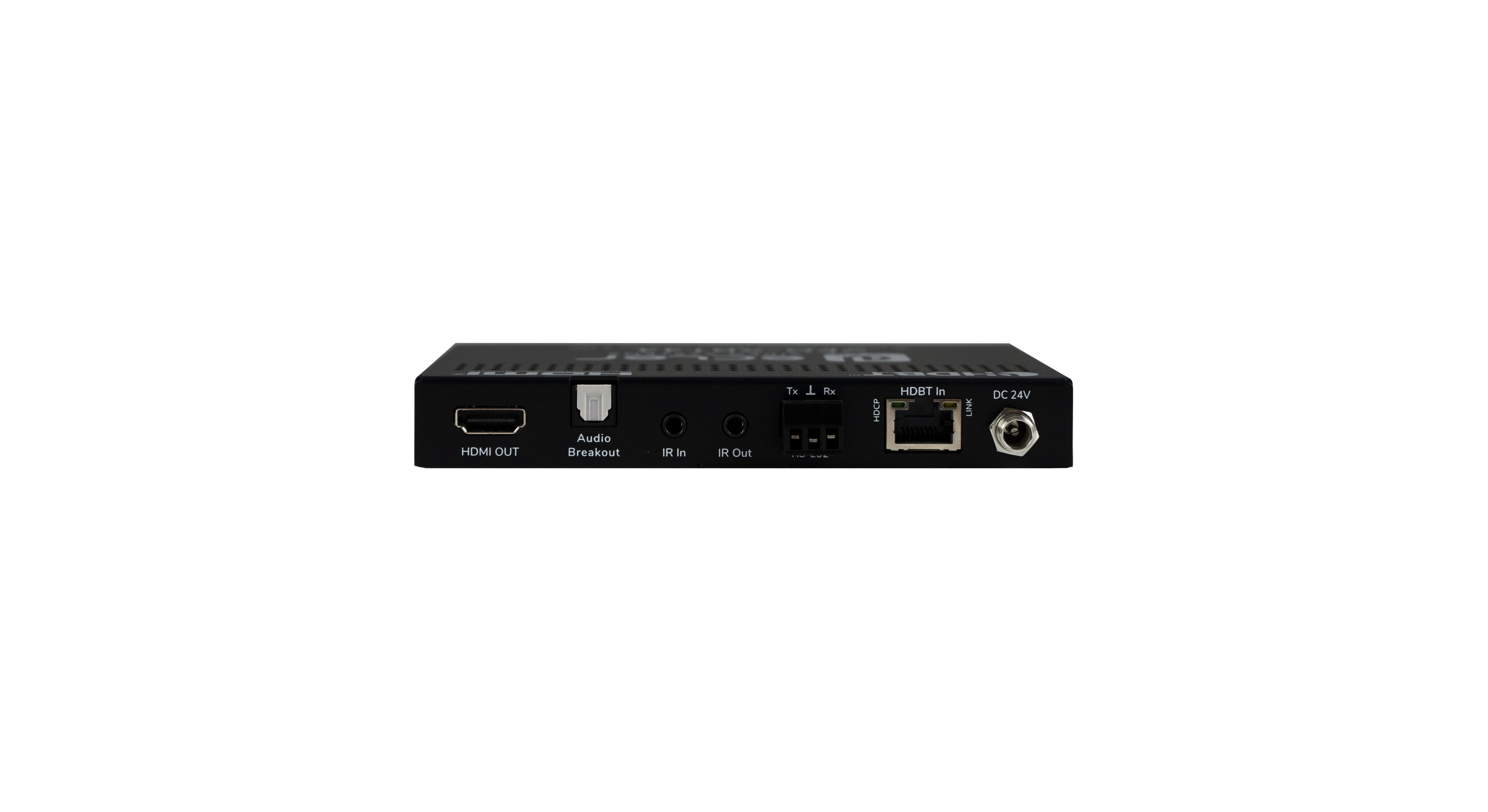

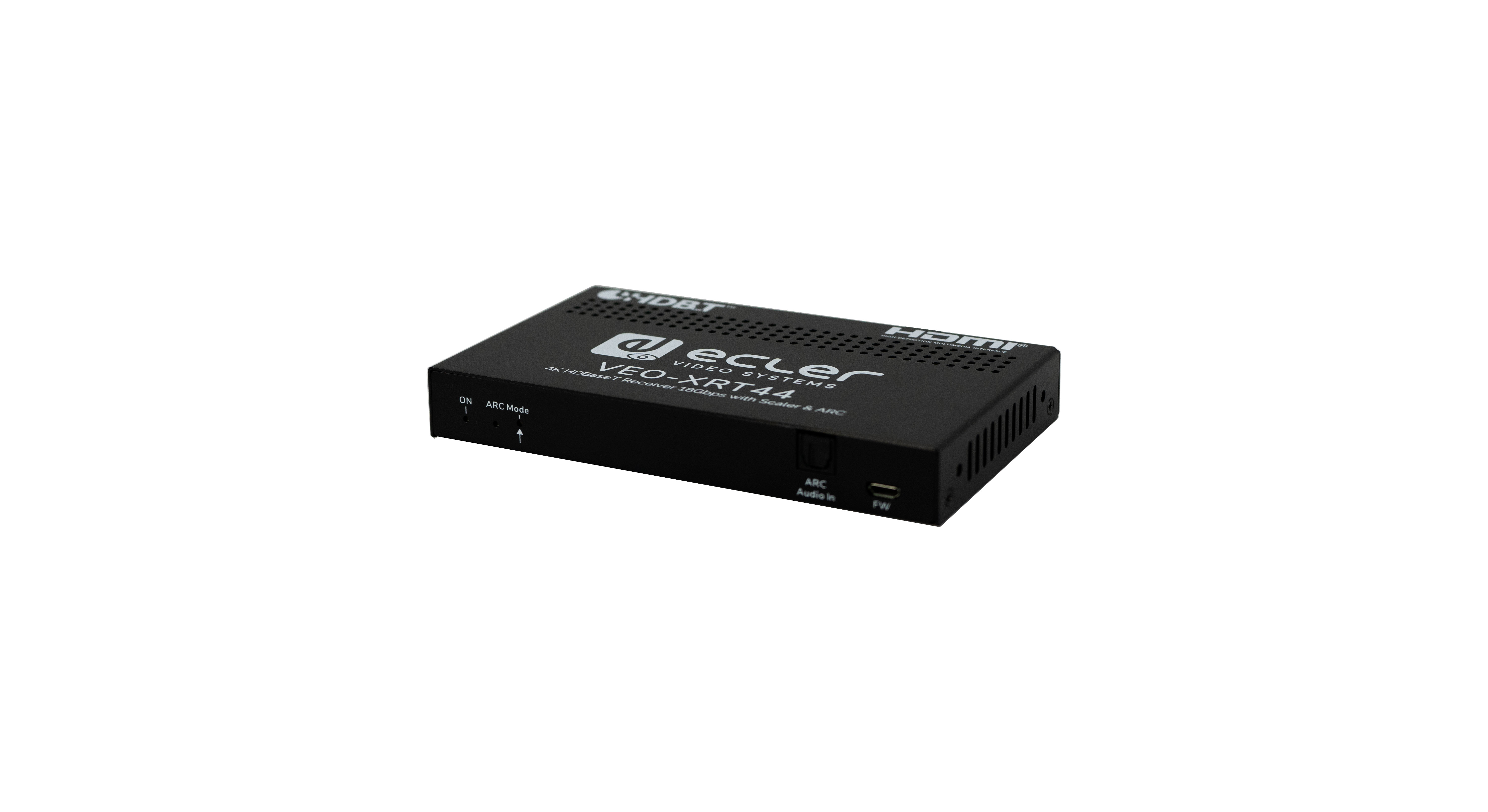

VEO-XRT44

VEO-XRT44 is a professional HDBaseT receiver for HDMI® extension of High Dynamic Range (HDR) formats. Bidirectional PoH (Power Over HDBaseT) allows to use only one power supply connected to the Transmitter or the Receiver, according to the installation needs. This product represents the ideal solution for residential and commercial applications that include the latest 4K/UHD and HDR sources and displays.

• Supports HDMI® and the HDMI® video resolution up to 4K@60Hz 4:4:4 HDR.
• HDCP 2.2 and 1.4 supported.
• Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.
• Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
• SPDIF out on receiver for source audio de-embedding.
• 18Gbps high bandwidth.
• Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.
• Test pattern provides a built-in 4K/1080P image for troubleshooting.
• Bidirectional IR, RS-232 and 24V PoH.
• Supports ARC.
• Supports CEC pass-through.
• Provides LEDs to indicate the current operating status.
• Firmware upgrade by Micro-USB port.
• ESD protection.

Applications

Retail   Sports & Wellness   Hospitality
